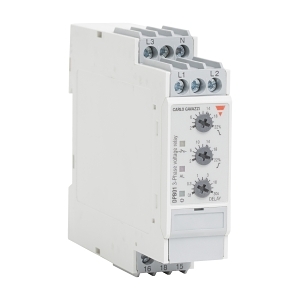

Carlo Gavazzi Monitoring Relay 3 Phase Neut Over/Under/Voltage-Phase-Seq/Phase-Loss 380-415VAC 1CO
Trade Discount 25%
The Carlo Gavazzi Monitoring Relay provides reliable monitoring of 3-phase systems, ensuring safety and efficiency by detecting phase loss, under-voltage, and over-voltage conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Monitoring Relay 3 Phase Neut Over/Under/Voltage-Phase-Seq/Phase-Loss 380-415VAC 1CO
Brand: NHP
SKU: DPB01CM48W4
Alternatively Known As: 3 Phase Monitoring Relay, Voltage Phase Sequence Relay, Phase Loss Relay
Technical Specifications
- Rated Operating Voltage: 380-415 V
- Voltage Measuring Range: 323-550 V
- Rated Frequency: 50-60 Hz
- Rated Operation Current: 8 A
- Over Voltage Category: III
- Degree of Protection: IP20
- Storage Temperature: -30-80 °C
- Material Contact: Silver tin-oxide
- Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Phase failure detection
- Phase sequence monitoring
- Neutral loss monitoring
- Under voltage detection
- Over voltage detection
- Self-powered operation
- DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems in manufacturing and processing plants
- Commercial: Ensuring voltage stability in commercial buildings
- General: Any application requiring phase monitoring and voltage detection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing equipment damage due to voltage irregularities.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable phase monitoring.
