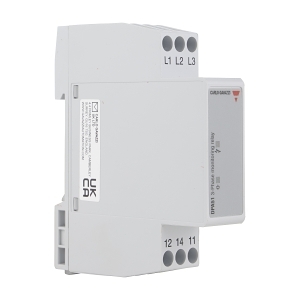

Carlo Gavazzi Monitoring Relay 3 Phase plus Neutral Over and Under Voltage Asymmetry 380-480VAC 1CO
Trade Discount 25%
The Carlo Gavazzi Monitoring Relay provides reliable monitoring of 3-phase systems, ensuring voltage stability and protection against phase failure and neutral loss.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Monitoring Relay 3 Phase plus Neutral Over and Under Voltage Asymmetry 380-480VAC 1CO
Brand: NHP
SKU: DPB01CM48N
Alternatively Known As: Phase Monitoring Relay, Voltage Monitoring Relay
Technical Specifications
- Rated Operating Voltage: 380-480 V
- Voltage Measuring Range: 323-550 V
- Rated Frequency: 50-60 Hz
- Phase Failure Detection: Yes
- Neutral Loss Monitoring: Yes
- Under Voltage Detection: Yes
- Over Voltage Detection: Yes
- Number of Contacts: 1 CO
- Rated Operation Current: 8 A
- Type of Electric Connection: Screw connection
- Degree of Protection: IP20
- Storage Temperature: -30-80 °C
- Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Detects phase failure and neutral loss.
- Under and over voltage detection capabilities.
- Self-powered operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems in manufacturing and processing plants
- Commercial: Ensuring voltage stability in commercial buildings
- General: Suitable for any application requiring voltage monitoring
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances energy efficiency by preventing equipment damage due to voltage irregularities.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring voltage monitoring.
