PA18ALD04TOSA
BRAND: NHP

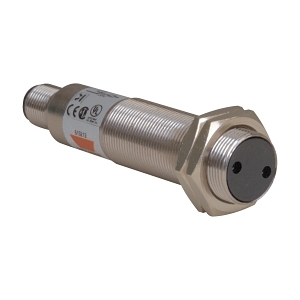

Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Metal M18 AC SCR NO M12 Plug Range 400mm 2m


$277.00 List price: $367.80
+

Product Name/Title: Carlo Gavazzi Photoelectric Sensor Diffuse Reflective Metal M18 AC SCR NO M12 Plug Range 400mm 2m

Brand: NHP

SKU: PA18ALD04TOSA

Alternatively Known As: Diffuse Reflective Sensor, Photoelectric Switch, Infrared Sensor

Technical Specifications
  • Voltage Type: AC
  • Rated Control Supply Voltage: 250-20 V (AC 50 Hz), 20-250 V (AC 60 Hz)
  • Type of Switching Output: Normally open contact (NO)
  • Max Output Current: 0.5 mA
  • Response Time: 20 ms
  • Degree of Protection: IP67
  • Sensing Type: Standard diffuse
  • Type of Light: Infrared light
  • Wavelength of the Sensor: 880 nm
  • Beam Angle Field of View: 50 °
  • Ambient Temperature: -20-60 °C
  • Dimensions (H x L x W): 71.5mm x 18mm x 18mm
  • Weight: 0.5 kg
Key Features
  • Diffuse reflective sensing type with a maximum switching distance of 400 mm.
  • IP67 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation
  • Safety applications
  • Object detection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Photoelectric Sensor is available now for immediate purchase, ideal for industrial automation and safety applications.

PA18ALD04TOSA-AU-Photoelectric-Sensor-Datasheet.pdf (PA18ALD04TOSA-AU-Photoelectric-Sensor-Datasheet.pdf, 252 Kb) [Download]
