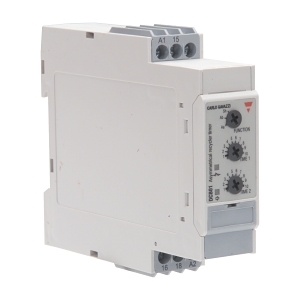

Product Name/Title: Carlo Gavazzi Timer Relay Asymmetrical Recycler 24VDC 24-240VAC Supply 1CO 0.1Sec-100 Hr
Brand: NHP
SKU: DCB01CM24
Alternatively Known As: Timer Relay, Asymmetrical Timer, Relay Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type for Actuating: AC/DC
- Rated Control Supply Voltage (DC): 24 V
- Rated Control Supply Voltage (AC 60 Hz): 264-20.4 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Time Range: 0.1-360000 s
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan of Control Contacts: 200000 cycles
- Mechanical Lifetime of Control Contacts: 30000000 cycles
- Operating Temperature: -25-45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Asymmetrical recycler timer relay with adjustable time range from 0.1 seconds to 100 hours.
- Compatible with both AC and DC supply voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits in machinery
- Timing applications in electrical installations
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
