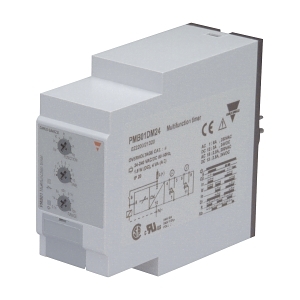

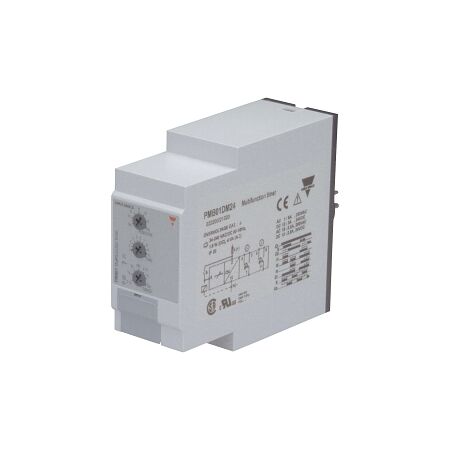

Carlo Gavazzi Timer Relay Multi Function 24V DC and 24 and 240V AC Supply 1CO 0.1 Sec-100Hr
The Carlo Gavazzi Timer Relay offers versatile timing functions for both AC and DC applications, ensuring precise control in various industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Timer Relay Multi Function 24V DC and 24 and 240V AC Supply 1CO 0.1 Sec-100Hr
Brand: NHP
SKU: DMB01CM24
Alternatively Known As: Timer Relay, Multi Function Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type: AC/DC
- Rated Control Supply Voltage (DC): 24 V
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Time Range: 0.1-360000 s
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifespan: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Multi-function timer relay with adjustable time settings from 0.1 seconds to 100 hours.
- Compatible with both AC and DC supply voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- General: Any application requiring timed relay functions
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient design minimizes power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
