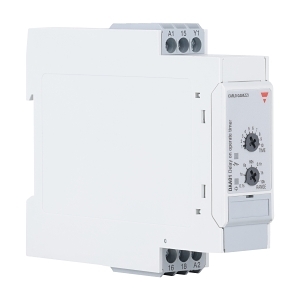

Product Name/Title: Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply 1 CO0.1 Second to 100 Hours
Brand: NHP
SKU: DAA01CM24
Alternatively Known As: Timer Relay, Delay Relay, On Delay Timer
Technical Specifications
- Voltage Type: AC
- Rated Control Supply Voltage: 24 V DC
- Rated Operation Current: 0.2 A at DC 12-24 V
- Time Setting Accuracy: 5%
- Power Consumption: 0.5 VA
- Electrical Lifespan: 200,000 cycles
- Mechanical Lifetime: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Delay on energization function
- Time range from 0.1 seconds to 100 hours
- Screw connection for easy installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits requiring time delays
- HVAC systems for timing control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay On Delay 24VDC and 24-240VAC Supply is available now for immediate purchase, ideal for industrial automation and control applications.
