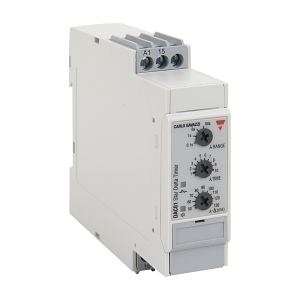

Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply 1 CO0.1 to 600 Seconds
The Carlo Gavazzi Timer Relay Star Delta offers precise timing control for various applications, featuring a wide time range and robust design for reliable performance in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply 1 CO0.1 to 600 Seconds
Brand: NHP
SKU: DAC01CM24
Alternatively Known As: Timer Relay, Star Delta Timer, Carlo Gavazzi Timer
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage (AC 60 Hz): 20.4-264 V
- Rated Control Supply Voltage (AC 50 Hz): 346-440 V
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Function Star Delta: Yes
- Time Setting Accuracy: 5 %
- Power Consumption: 0.5 VA
- Electrical Lifespan Control Contacts: 200,000 cycles
- Mechanical Lifetime Control Contacts: 30,000,000 cycles
- Operating Temperature: -25 to 45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Time range from 0.1 to 600 seconds.
- Suitable for DIN rail mounting.
- Star delta function for motor control.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Star Delta 24-240VAC DC Supply is available now for immediate purchase. Ideal for industrial automation and control applications.
