NCC6LSZHBLUE
BRAND: CERTECH

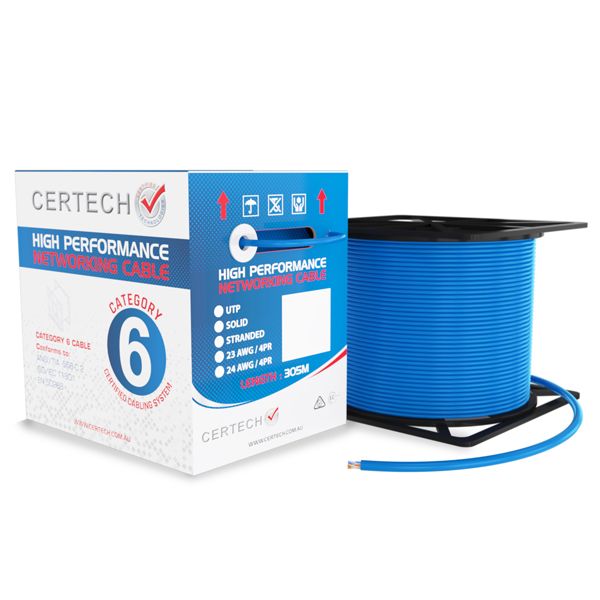

CERTECH 305M Cat6 U/UTP Solid Cable, Blue LSZH Jacket


$259.90 List price: $337.80
+

Product Name/Title: CERTECH 305M Cat6 U/UTP Solid Cable, Blue LSZH Jacket

Brand: Certech

SKU: NCC6LSZHBLUE

Alternatively Known As: Cat6 Ethernet Cable, U/UTP Cable, Solid Copper Network Cable

Technical Specifications
  • Cable Type: UTP
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper
  • Insulation Material: HDPE
  • Cable Length: 305m
  • Cable Diameter: 0.55mm
  • Cable Gauge: 23AWG
  • DC Resistance (Max.): ≤9.38Ω/100m
  • Operating Frequency: 250MHz
  • Installation Temperature: -20 ~ +60 degrees Celsius
  • Operating Temperature: -40 ~ +75 degrees Celsius
  • Dimensions (H x L x W): 100mm x 305000mm x 100mm
  • Weight: 13.1 kg
Key Features
  • 305m length for extensive installations.
  • 100% Bare Copper Conductor for optimal performance.
  • LSZH Jacket for reduced smoke and toxicity in case of fire.
  • 4K UHD Ready for high-definition data transmission.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
  • Residential: Home networking
  • Commercial: Office networking, data centers
  • General: Any installation requiring high-speed data transmission
Standards & Compliance
  • Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
  • LSZH jacket minimizes environmental impact by reducing harmful emissions in case of fire.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CERTECH 305M Cat6 U/UTP Solid Cable, Blue LSZH Jacket is available now for immediate purchase. Ideal for extensive networking installations.

Specification Sheet (ncc6lszhblue_u.pdf, 734 Kb) [Download]
