NCC6LSZHGREEN
BRAND: CERTECH

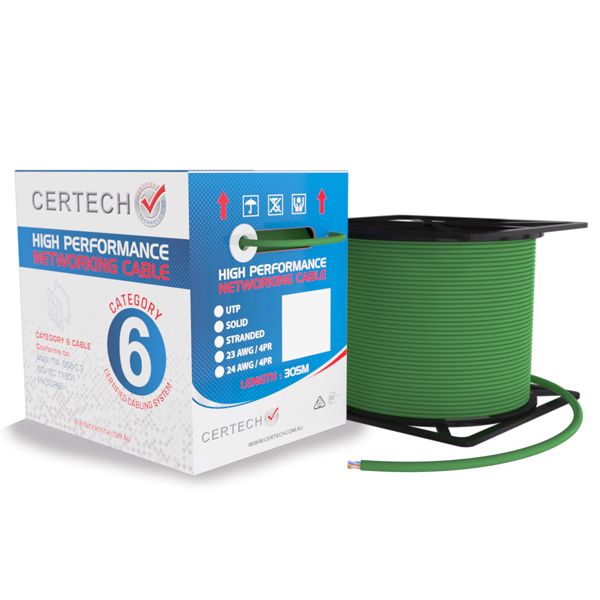

CERTECH 305M Cat6 U/UTP Solid Cable, Green LSZH Jacket


$259.90 List price: $337.80
+

Product Name/Title: CERTECH 305M Cat6 U/UTP Solid Cable, Green LSZH Jacket

Brand: Certech

SKU: NCC6LSZHGREEN

Alternatively Known As: Cat6 U/UTP Cable, Cat6 Networking Cable, LSZH Cat6 Cable

Technical Specifications
  • Cable Type: UTP
  • Jacket Material: LSZH
  • Conductor Material: Bare Copper
  • Insulation Material: HDPE
  • Cable Length: 305m
  • Cable Diameter: 0.55mm
  • Cable Gauge: 23AWG
  • DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair ≤4.0%
  • DC Resistance (Max.): ≤9.38Ω/100m
  • Dielectric Strength (Max.): DC 1000V 1min No Breakdown
  • Mutual Capacitance at Frequency: ≤5.8nF/100m
  • NVP: 69%
  • Operating Frequency: 250MHz
  • Flame Test Method: IEC60332-1-2
  • Installation Temperature: -20 ~ +60 degrees Celsius
  • Operating Temperature: -40 ~ +75 degrees Celsius
  • Dimensions (H x L x W): 0.55mm x 305000mm x 0.55mm
  • Weight: 13.1 kg
Key Features
  • 305m length for extensive installations.
  • 100% Bare Copper Conductor for optimal performance.
  • LSZH Jacket for reduced smoke and toxicity.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and compliance with standards.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Networking and data transmission
Standards & Compliance
  • AS/CA S008:2010 Approved
Environmental Benefits
  • LSZH jacket reduces harmful emissions in case of fire.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CERTECH 305M Cat6 U/UTP Solid Cable, Green LSZH Jacket is available now for immediate purchase. Ideal for networking and data transmission applications.

Specification Sheet (ncc6lszhgreen_u.pdf, 734 Kb) [Download]
