Trade Discount 23%
NCC6SLDEXT
BRAND: CERTECH

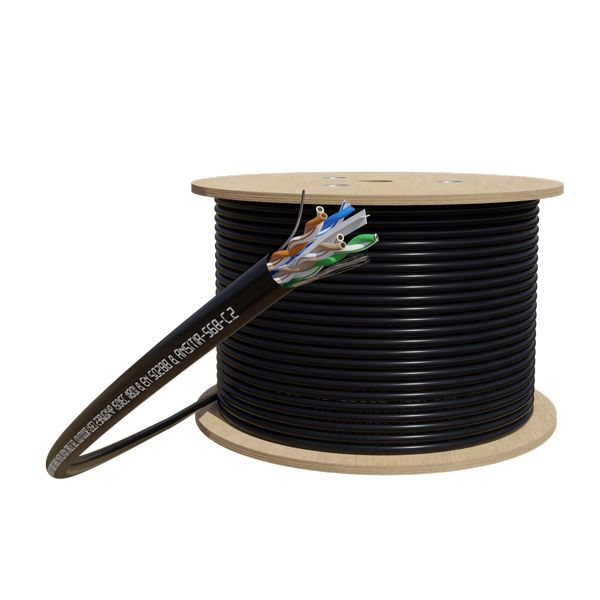

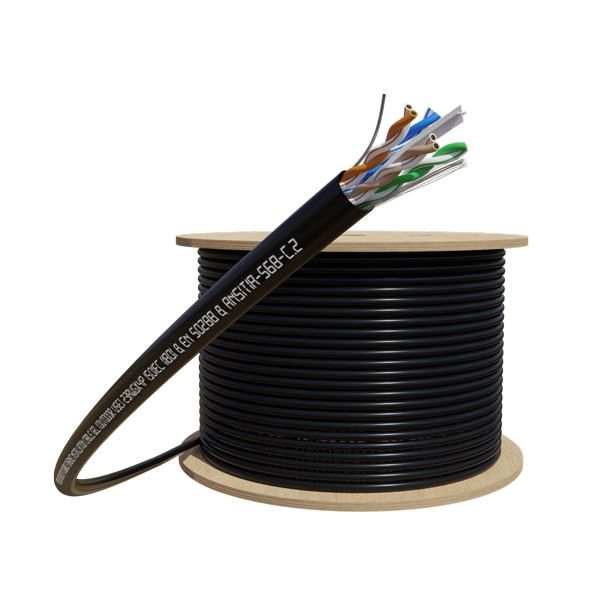

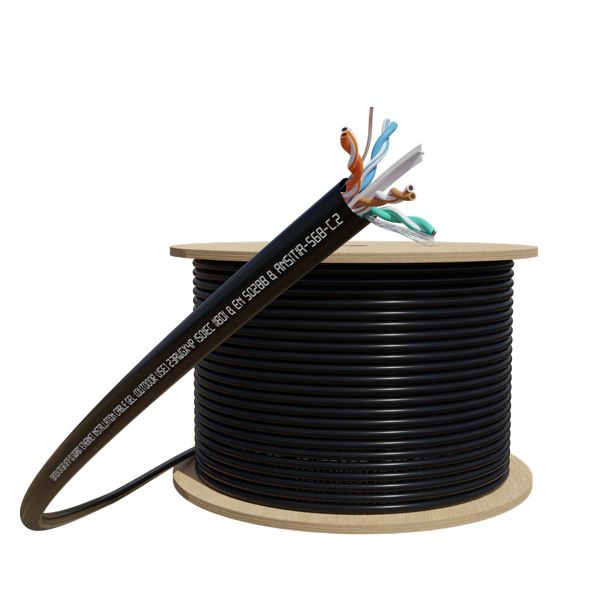

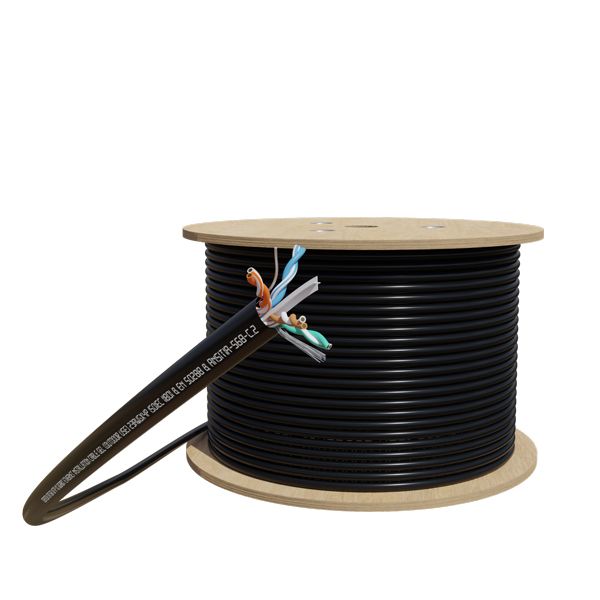

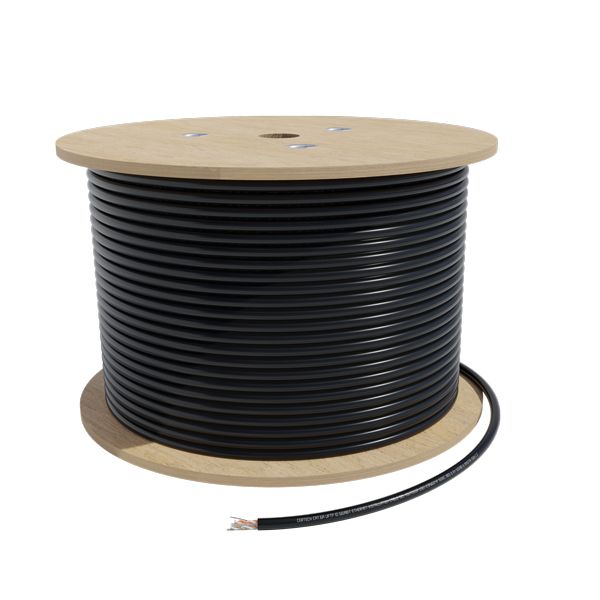

CERTECH 305M Cat6 U/UTP Solid External (Above Ground) Cable


$358.70 List price: $466.40
+

Product Name/Title: CERTECH 305M Cat6 U/UTP Solid External (Above Ground) Cable

Brand: Certech

SKU: NCC6SLDEXT

Alternatively Known As: Cat6 External Cable, Cat6 U/UTP Cable, 305M Cat6 Cable Roll

Technical Specifications
  • Cable Type: UTP
  • Jacket Material: PE
  • Conductor Material: Bare Copper
  • Insulation Material: HDPE
  • Cable Length: 305m
  • Cable Diameter: 0.55mm
  • Cable Gauge: 23AWG
  • DC Resistance (Max.): ≤9.38Ω/100m
  • Operating Frequency: 250MHz
  • Installation Temperature: -20 to +60 degrees Celsius
  • Operating Temperature: -40 to +75 degrees Celsius
  • Dimensions (H x L x W): 0.55mm x 305000mm x 0.55mm
  • Weight: 11.5 kg
Key Features
  • 305m length of Cat6 U/UTP cable suitable for external use.
  • 100% bare copper conductors for optimal performance.
  • Operating frequency of 250MHz for high-speed data transmission.
  • Temperature range from -40 to +75 degrees Celsius.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
  • General: Suitable for external installations requiring high-speed data transmission
Standards & Compliance
  • Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The CERTECH 305M Cat6 U/UTP Solid External Cable is available now for immediate purchase. Ideal for external installations requiring high-speed data transmission.

Specification Sheet (ncc6sldext_u.pdf, 430 Kb) [Download]
