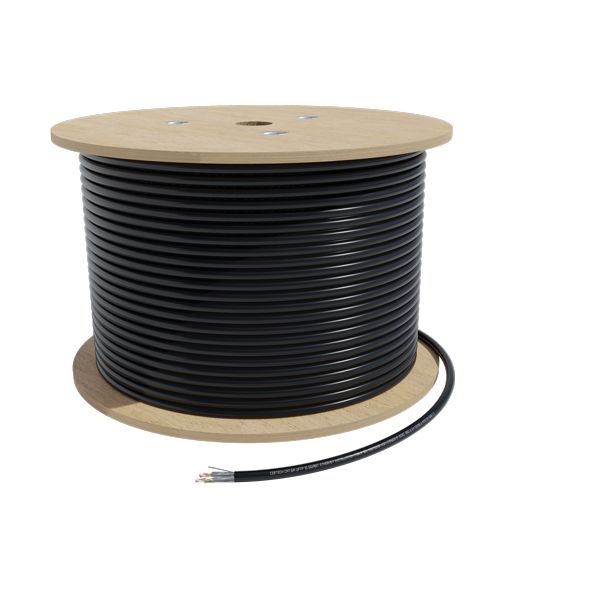

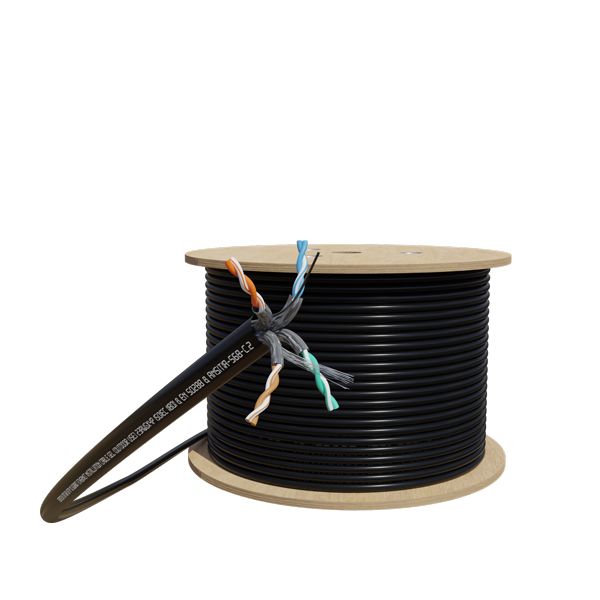

Product Name/Title: CERTECH 305M Cat6A 10G U/FTP Solid Gel Filled (Underground) Cable
Brand: Certech
SKU: NCC6ASLDGEL
Alternatively Known As: Cat6A Underground Cable, 10G U/FTP Cable, Gel Filled Cat6A Cable
Technical Specifications
- Cable Type: U/FTP
- Jacket Material: PE
- Conductor Material: Bare Copper
- Insulation Material: Skin Foam Skin PE
- Cable Length: 305m
- Cable Diameter: 0.56mm
- Cable Gauge: 23AWG
- Jacket Thickness: 0.60±0.05mm
- DC Resistance Unbalanced (Max.): in pair ≤2.0%, pair to pair≤4.0%
- DC Resistance (Max.): ≤9.38Ω/100m
- Dielectric Strength (Max.): DC 1000V 1min No Breakdown
- Mutual Capacitance at Frequency: ≤5.8nF/100m
- NVP: 74%
- Operating Frequency: 500MHz
- Installation Temperature: -20 ~ +60 degrees Celsius
- Operating Temperature: -40 ~ +75 degrees Celsius
- Dimensions (H x L x W): 0.6mm x 305000mm x 0.56mm
- Weight: 15 kg
Key Features
- 305m length for extensive installations.
- U/FTP design for reduced crosstalk and interference.
- Gel-filled for moisture protection in underground applications.
- 100% bare copper conductors for optimal performance.
- Operating frequency of 500MHz for high-speed data transfer.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and compliance with local regulations.
Applications
- Ideal for underground installations requiring high-speed data transmission.
- Suitable for residential and commercial networking applications.
Standards & Compliance
- Complies with AS/CA S008:2010 for telecommunications cabling.
Environmental Benefits
- Moisture-resistant design extends the lifespan of the cable in underground applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The CERTECH 305M Cat6A 10G U/FTP Solid Gel Filled Cable is available now for immediate purchase. Ideal for underground networking applications.
