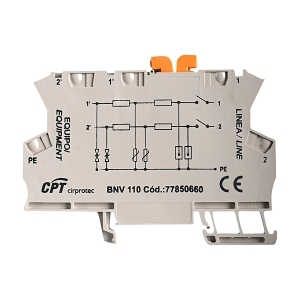

Product Name/Title: Cirprotec BNV Surge Protection Device Analogue Digital Module 2 Wire IO Imax 5kA 24VAC DIN Mount
Brand: NHP
SKU: CPTBNV30
Alternatively Known As: Surge Protection Device, SPD, Surge Diverter, Voltage Surge Protector
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 5 kA
- Lightning Impulse Current (10/350 µs): 5 kA
- Nominal Load Current: 0.3 A
- Voltage Protection Level (Core-Earth): 45 V
- Frequency: 3000000 MHz
- Number of Protected Wires: 2
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 91.6mm x 63.2mm x 6mm
- Weight: 0.03 kg
Key Features
- Designed for 24VAC systems with a maximum continuous voltage of 30V.
- Provides surge protection with a nominal discharge surge current of 5 kA.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting sensitive electronic equipment from voltage spikes.
- Commercial: Ensuring the safety of data networks and communication systems.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electronic devices, reducing electronic waste and promoting sustainability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec BNV Surge Protection Device is available now for immediate purchase. Ideal for industrial and commercial applications requiring surge protection.
