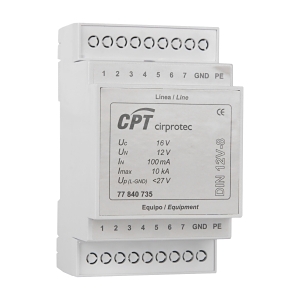

Product Name/Title: Cirprotec Final Diverters SPD Analogue 12V 7 Wires
Brand: NHP
SKU: CPTDIN12V8
Alternatively Known As: Surge Protection Device, SPD, Final Diverter
Technical Specifications
- Nominal Voltage AC: 12 V
- Max Continuous Voltage AC: 16 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Core): 45 V
- Voltage Protection Level (Core-Earth): 45 V
- Voltage Protection Level (Core-Signal Ground): 27 V
- Frequency: 3000000 MHz
- Number of Protected Wires: Other
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 60mm x 52.5mm
- Weight: 0.11 kg
Key Features
- Surge Protection Device Final designed for 12V systems.
- DIN rail mounting for easy installation.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any location requiring surge protection for electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical systems from surges, reducing waste and potential damage.
Warranty Information
Standard warranty applies, please check with the supplier for details.
Available Now
The Cirprotec Final Diverters SPD Analogue 12V 7 Wires is available now for immediate purchase. Ideal for residential and commercial spaces requiring surge protection.
