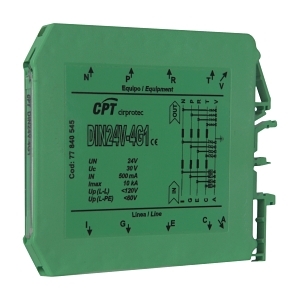

Product Name/Title: Cirprotec Final Diverters SPD Comm IO 24V 2 Wires
Brand: NHP
SKU: CPTDIN24V2G2
Alternatively Known As: Surge Protection Device, Final Diverter, SPD for Data Networks
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Core): 60 V
- Voltage Protection Level (Core-Earth): 600 V
- Frequency: 2000000 MHz
- Number of Protected Wires: Other
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 90mm x 8mm
- Weight: 0.07 kg
Key Features
- Surge Protection Device designed for final stage protection.
- IP20 rated for indoor use.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protection of data networks and communication systems
- Commercial: Use in various electrical installations requiring surge protection
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Protects sensitive electronic equipment from voltage spikes, reducing waste and prolonging device lifespan.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cirprotec Final Diverters SPD Comm IO 24V 2 Wires is available now for immediate purchase. Ideal for industrial and commercial applications requiring surge protection.
Non-Returnable & Non-Cancellable
