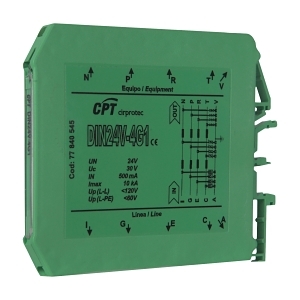

Product Name/Title: Cirprotec Final Diverters SPD Comm IO 24V 4 Wires
Brand: NHP
SKU: CPTDIN24V4G1
Alternatively Known As: Surge Protection Device, Final Diverter, SPD for Data Networks
Technical Specifications
- Nominal Voltage AC: 24 V
- Max Continuous Voltage AC: 30 V
- Nominal Discharge Surge Current (8/20): 5 kA
- Max Discharge Surge Current (8/20): 10 kA
- Lightning Impulse Current (10/350 µs): 10 kA
- Voltage Protection Level (Core-Core): 120 V
- Voltage Protection Level (Core-Earth): 60 V
- Frequency: 3000000 MHz
- Number of Protected Wires: 4
- Mounting Method: DIN rail (top hat rail) 35 mm
- Degree of Protection: IP20
- Max Conductor Cross Section: 2.5 mm²
- Dimensions (H x L x W): 90mm x 90mm x 7.5mm
- Weight: 0.71 kg
Key Features
- Surge protection for 4 wires with a maximum discharge surge current of 10 kA.
- IP20 rated for indoor use.
- DIN rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting sensitive electronic equipment from surges
- Commercial: Ensuring the safety of data networks and MCR technology
Standards & Compliance
- Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
- Helps in reducing electronic waste by protecting devices from surges.
Warranty Information
Standard warranty applies.
Available Now
The Cirprotec Final Diverters SPD Comm IO 24V 4 Wires is available now for immediate purchase. Ideal for protecting sensitive electronic equipment in industrial and commercial settings.
Non-Returnable & Non-Cancellable
