CPTPSC412400IR
BRAND: NHP

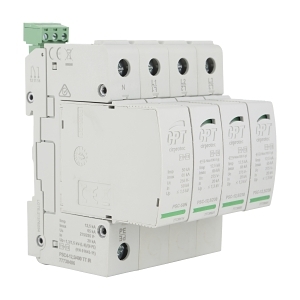

Cirprotec PSC SPD 1 and 2 3 Phase L-L and L-N and N-PE Iimp 12.5kA Imax 65kA 400VAC


$1,561.80 List price: $2,073.90
+

Product Name/Title: Cirprotec PSC SPD 1 and 2 3 Phase L-L and L-N and N-PE Iimp 12.5kA Imax 65kA 400VAC

Brand: NHP

SKU: CPTPSC412400IR

Alternatively Known As: Surge Protection Device, SPD, Power Surge Protector

Technical Specifications
  • Nominal Discharge Surge Current (8/20): 12.5 kA
  • Max Discharge Surge Current (8/20): 65 kA
  • Protection Class: I, II
  • Nominal Voltage AC: 400 V
  • Max Continuous Voltage AC: 275 V
  • Voltage Protection Level: 1.3 kV
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Construction Size: 4 modular spacing
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 90mm x 100mm x 70mm
  • Weight: 1.0 kg
Key Features
  • Surge protection for L-L, L-N, and N-PE configurations.
  • Nominal discharge surge current of 12.5 kA.
  • Maximum discharge surge current of 65 kA.
  • IP20 rated for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply systems
  • Commercial: Electrical installations requiring surge protection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Protects electrical systems from damage, reducing waste and prolonging equipment lifespan.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSC SPD 1 and 2 3 Phase Surge Protection Device is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

CPTPSC412400IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSC412400IR-AU-Surge-Protection-Device-Datasheet.pdf, 254 Kb) [Download]
