CPTPSC212230IR
BRAND: NHP

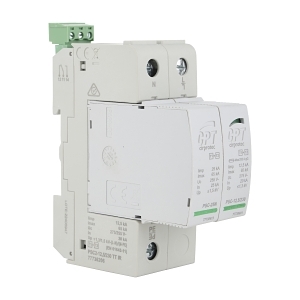

Cirprotec PSC Surge Protection Device Type 1 and 2 1 Phase L-N and N-PE Iimp 12.5kA Imax 65kA 240VAC


$754.20 List price: $1,001.50
+

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 1 Phase L-N and N-PE Iimp 12.5kA Imax 65kA 240VAC

Brand: NHP

SKU: CPTPSC212230IR

Alternatively Known As: Surge Protection Device, SPD, Surge Suppressor

Technical Specifications
  • Nominal Discharge Surge Current (8/20): 12.5 kA
  • Maximum Discharge Surge Current (8/20): 65 kA
  • Nominal Voltage AC: 240 V
  • Max Continuous Voltage AC: 275 V
  • Voltage Protection Level: 1.3 kV
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Construction Size: 2 modular spacing
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 90mm x 70mm x 36mm
  • Weight: 1.0 kg
Key Features
  • Surge protection for 1 Phase L-N and N-PE.
  • Nominal discharge surge current of 12.5 kA.
  • Maximum discharge surge current of 65 kA.
  • IP20 rated for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes and apartments
  • Commercial: Offices and retail spaces
  • Industrial: Manufacturing and production facilities
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Protects electrical systems from surges, reducing waste and damage to equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

CPTPSC212230IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSC212230IR-AU-Surge-Protection-Device-Datasheet.pdf, 230 Kb) [Download]
