CPTPSC225230IR
BRAND: NHP

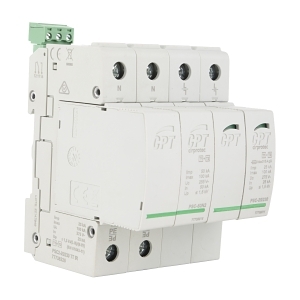

Cirprotec PSC Surge Protection Device Type 1 and 2 1 Phase L-N and N-PE Iimp 25kA Imax 100kA 240VAC


$1,113.60 List price: $1,478.70
+

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 1 Phase L-N and N-PE Iimp 25kA Imax 100kA 240VAC

Brand: NHP

SKU: CPTPSC225230IR

Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector

Technical Specifications
  • Nominal Discharge Surge Current: 25 kA
  • Maximum Discharge Surge Current: 100 kA
  • Nominal Voltage AC: 240 V
  • Max Continuous Voltage AC: 275 V
  • Voltage Protection Level: 1.3 kV
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Construction Size: 4 modular spacing
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 90mm x 100mm x 70mm
  • Weight: 1.0 kg
Key Features
  • Surge protection for 1 Phase L-N and N-PE
  • Nominal discharge surge current of 25 kA
  • Maximum discharge surge current of 100 kA
  • Voltage protection level of 1.3 kV
  • DIN rail mounting for easy installation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes and apartments
  • Commercial: Offices and retail spaces
  • Industrial: Manufacturing and production facilities
Standards & Compliance
  • Complies with relevant Australian standards for surge protection devices.
Environmental Benefits
  • Helps protect electrical systems from damage due to voltage spikes, reducing waste and maintenance costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.

CPTPSC225230IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSC225230IR-AU-Surge-Protection-Device-Datasheet.pdf, 246 Kb) [Download]
