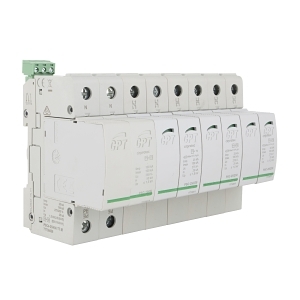

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 3 Ph L-L, L-N, N-PE Imsc 25kA Imax 200kA 400VAC
Brand: NHP
SKU: CPTPSC425400IR
Alternatively Known As: Surge Protection Device, Surge Suppressor, Electrical Surge Protector
Technical Specifications
- Nominal Discharge Surge Current (8/20): 25 kA
- Max Discharge Surge Current (8/20): 200 kA
- Protection Class: I, II
- Nominal Voltage AC: 400 V
- Max Continuous Voltage AC: 275 V
- Voltage Protection Level: 1.3 kV
- Mounting Method: DIN rail (top hat rail) 35 mm
- Construction Size: 8 modular spacing
- Degree of Protection: IP20
- Dimensions (H x L x W): 100mm x 200mm x 100mm
- Weight: 1.5 kg
Key Features
- Surge protection for L-L, L-N, and N-PE configurations.
- Nominal discharge surge current of 25 kA.
- Maximum discharge surge current of 200 kA.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protecting electrical systems in factories and manufacturing plants
- Commercial: Safeguarding office buildings and retail environments
- Residential: Ensuring safety in home electrical systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Protects electrical equipment from damage, reducing electronic waste.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase. Ideal for protecting electrical systems in various environments.
