Making Trade Life Easy!

Home/Electrical/Switchgear/Surge Protection/Cirprotec PSC Surge Protection Device Type 1 and 2 3 Phase L-L and L-N Iimp 25kA Imsc 200kA 400VAC

Trade Discount 25%

SKU: CPTPSC325400IR

BRAND: NHP

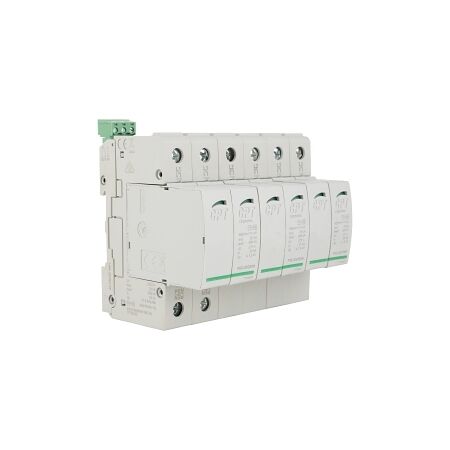

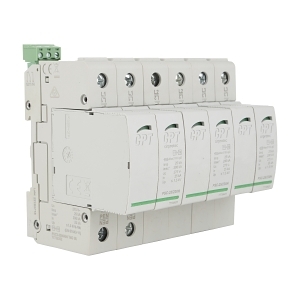

Cirprotec PSC Surge Protection Device Type 1 and 2 3 Phase L-L and L-N Iimp 25kA Imsc 200kA 400VAC

$1,850.00 List price: $2,456.50

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Cirprotec PSC Surge Protection Device Type 1 and 2 3 Phase L-L and L-N Iimp 25kA Imsc 200kA 400VAC

Brand: NHP

SKU: CPTPSC325400IR

Alternatively Known As: Surge Protection Device, Surge Suppressor, Voltage Surge Protector

Technical Specifications

Nominal Discharge Surge Current (8/20): 25 kA
Max Discharge Surge Current (8/20): 200 kA
Protection Class: I, II
Nominal Voltage AC: 400 V
Max Continuous Voltage AC: 275 V
Voltage Protection Level: 1.5 kV
Mounting Method: DIN rail (top hat rail) 35 mm
Construction Size: 6 modular spacing
Degree of Protection: IP20
Dimensions (H x L x W): 100mm x 120mm x 90mm
Weight: 1.5 kg

Key Features

Surge protection for both line-to-line and line-to-neutral applications.
High discharge surge current capacity of 25 kA.
Maximum discharge surge current of 200 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Protecting machinery and equipment from voltage surges
Commercial: Safeguarding electrical systems in office buildings
Residential: Ensuring home electrical systems are protected from surges

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Protects electrical systems, reducing waste from damaged equipment.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Cirprotec PSC Surge Protection Device Type 1 and 2 is available now for immediate purchase, ideal for protecting electrical systems in various applications.

CPTPSC325400IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSC325400IR-AU-Surge-Protection-Device-Datasheet.pdf, 249 Kb) [Download]
