CPTPSM340600IR
BRAND: NHP

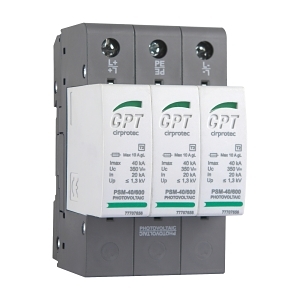

Cirprotec PSM PV Pluggable Surge Protection Device 40kA 600V DC


$466.10 List price: $618.90
+

Product Name/Title: Cirprotec PSM PV Pluggable Surge Protection Device 40kA 600V DC

Brand: NHP

SKU: CPTPSM340600IR

Alternatively Known As: Surge Protection Device, PV Surge Protector, Solar Surge Protection

Technical Specifications
  • Nominal discharge surge current (8/20): 20 kA
  • Max discharge surge current (8/20): 40 kA
  • Protection class: II
  • Max continuous voltage DC: 600 V
  • Voltage protection level: 2.6 kV
  • Mounting method: DIN rail (top hat rail) 35 mm
  • Construction size: 3 modular spacing
  • Degree of protection: IP20
  • Max conductor cross section (solid): 35 mm²
  • Max conductor cross section (flexible): 25 mm²
  • Dimensions (H x L x W): 100mm x 60mm x 90mm
  • Weight: 1.0 kg
Key Features
  • Pluggable design for easy installation and maintenance.
  • High surge current capacity of 40 kA.
  • Protection class II for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Solar power systems
  • Photovoltaic installations
  • Renewable energy applications
Standards & Compliance
  • Complies with AS/NZS 5033 for installation of photovoltaic (solar) systems.
Environmental Benefits
  • Protects solar installations from voltage spikes, enhancing system longevity and efficiency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSM PV Pluggable Surge Protection Device 40kA 600V DC is available now for immediate purchase. Ideal for solar power systems and renewable energy applications.

Non-Returnable & Non-Cancellable

CPTPSM340600IR-AU-Surge-Protection-Device-PV-Datasheet.pdf (CPTPSM340600IR-AU-Surge-Protection-Device-PV-Datasheet.pdf, 285 Kb) [Download]
