CPTPSM420400IR
BRAND: NHP

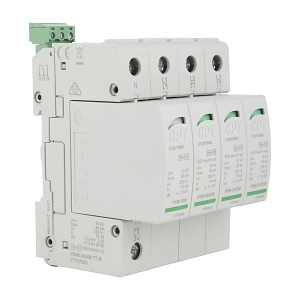

Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N and N-PE Imax 20kA 400VAC


$325.80 List price: $432.60
+

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N and N-PE Imax 20kA 400VAC

Brand: NHP

SKU: CPTPSM420400IR

Alternatively Known As: Surge Protection Device, Surge Suppressor, Power Surge Protector

Technical Specifications
  • Max Discharge Surge Current: 20 kA
  • Nominal Voltage AC: 400 V
  • Max Continuous Voltage AC: 320 V
  • Voltage Protection Level: 1.4 kV
  • Mounting Method: DIN rail (top hat rail) 35 mm
  • Construction Size: 4 modular spacing
  • Degree of Protection: IP20
  • Max Conductor Cross Section (Solid): 35 mm²
  • Max Conductor Cross Section (Flexible): 25 mm²
  • Dimensions (H x L x W): 90mm x 100mm x 70mm
  • Weight: 1.0 kg
Key Features
  • Surge protection device with a maximum discharge surge current of 20 kA.
  • Protection class II for enhanced safety.
  • Designed for 400 V nominal voltage AC systems.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power supply systems in factories and manufacturing plants
  • Commercial: Office buildings and retail environments
  • General: Any location requiring surge protection for electrical systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Protects electrical systems from surges, reducing waste and extending equipment lifespan.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust surge protection.

CPTPSM420400IR-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSM420400IR-AU-Surge-Protection-Device-Datasheet.pdf, 268 Kb) [Download]
