Home/Electrical/Switchgear/Surge Protection/Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N, N-PE Imax 40kA 400VAC Safeground

Trade Discount 25%

SKU: CPTPSM440400SG

BRAND: NHP

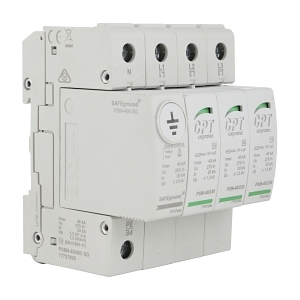

Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N, N-PE Imax 40kA 400VAC Safeground

$467.50 List price: $620.70

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N, N-PE Imax 40kA 400VAC Safeground

Brand: NHP

SKU: CPTPSM440400SG

Alternatively Known As: Surge Protection Device, Surge Suppressor, Voltage Surge Protector

Technical Specifications

Max Discharge Surge Current (8/20): 40 kA
Protection Class: II
Nominal Voltage AC: 400 V
Max Continuous Voltage AC: 320 V
Voltage Protection Level: 1.3 kV
Mounting Method: DIN rail (top hat rail) 35 mm
Construction Size: 4 modular spacing
Degree of Protection: IP20
Max Conductor Cross Section (Solid/Solid Stranded): 35 mm²
Max Conductor Cross Section (Flexible/Fine Strand): 25 mm²
Dimensions (H x L x W): 90mm x 100mm x 70mm
Weight: 1.0 kg

Key Features

Surge protection device with a maximum discharge surge current of 40 kA.
Protection class II for enhanced safety.
Designed for 400 V nominal voltage with a voltage protection level of 1.3 kV.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Manufacturing facilities, data centers, and commercial buildings
Residential: Homes requiring surge protection for electrical systems

Standards & Compliance

Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.

Environmental Benefits

Protects electrical systems from surges, reducing waste and extending equipment lifespan.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Cirprotec PSM Surge Protection Device Type 2 is available now for immediate purchase, ideal for protecting electrical systems in various applications.

CPTPSM440400SG-AU-Surge-Protection-Device-Datasheet.pdf (CPTPSM440400SG-AU-Surge-Protection-Device-Datasheet.pdf, 276 Kb) [Download]
