CONN007

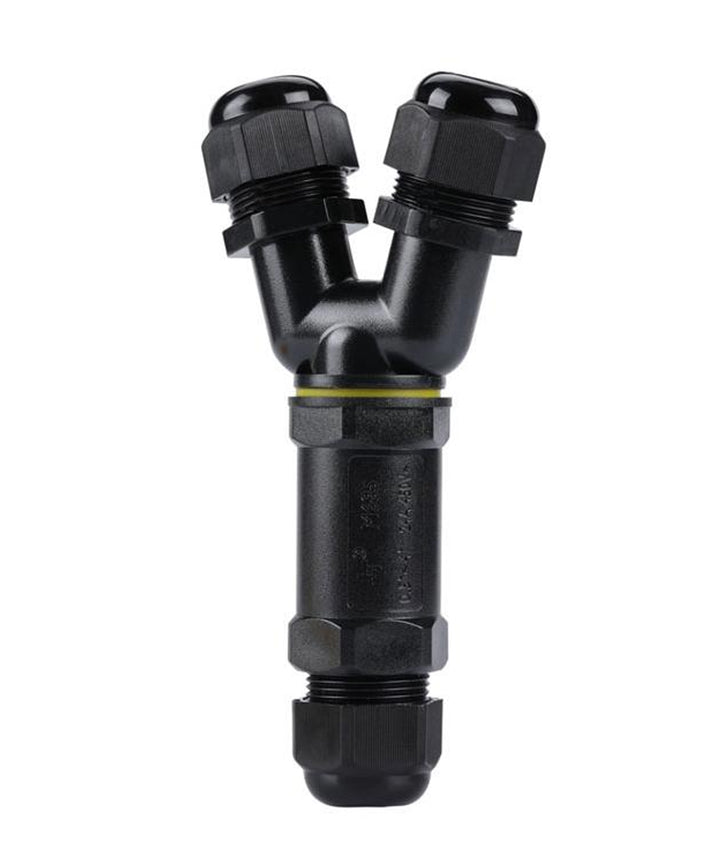

CONNECTOR 3 Way Y Shape IP68 W/Proof


$14.00 List price: $18.30
+

Product Name/Title: CONNECTOR 3 Way Y Shape IP68 W/Proof

Brand: CLA Lighting

SKU: CONN007

Alternatively Known As: 3 Way Waterproof Connector, Y Shape Connector, IP68 Connector

Technical Specifications
  • Housing: Nylon + PC
  • Conductor: Brass
  • Rated Power: 32A 450VAC
  • Rated connecting capacity: 0.5 ~ 4.0mm²
  • Available cable diameter (Rubber): 4-8mm / 8-12mm

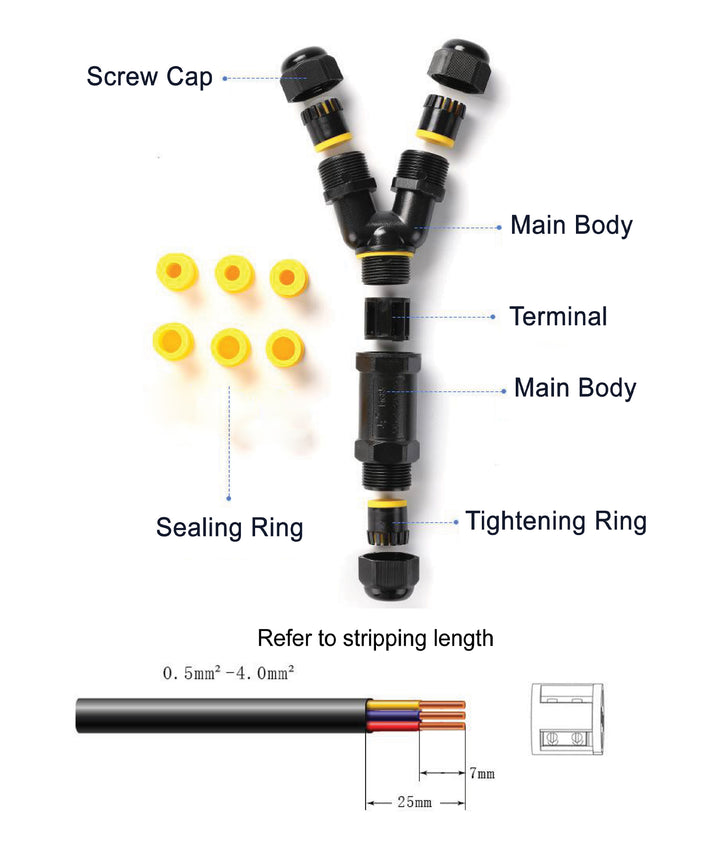

  • Refer to stripping length: External stripping 25mm; Internal stripping 7mm
  • IP rating: IP68

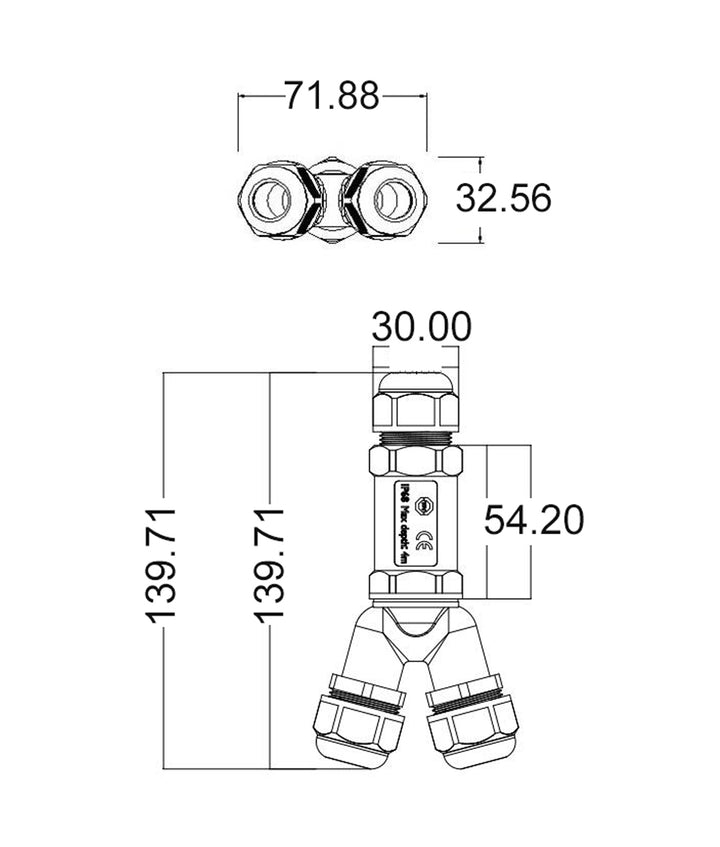

  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • IP68 rated for complete protection against dust and water ingress.
  • Includes extra rubber fittings for versatile cable diameters.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for outdoor and harsh environments requiring waterproof connections.
  • Commercial: Ideal for use in construction sites and outdoor installations.
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year replacement warranty.

Available Now

The CONNECTOR 3 Way Y Shape IP68 Waterproof is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable waterproof connections.
