TE3112

Connector TE 300Hx150Wx120D IP66 Steel RAL7032


$232.20 List price: $291.90
+

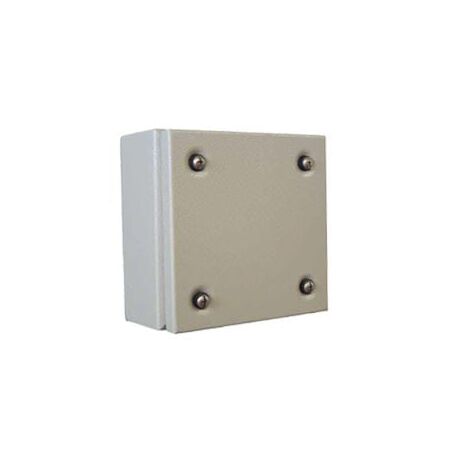

Product Name/Title: Connector TE 300Hx150Wx120D IP66 Steel RAL7032

Brand: B&R Enclosures

SKU: TE3112

Alternatively Known As: Zinc Coated Steel Connector, Industrial Steel Enclosure, IP66 Connector

Technical Specifications
  • Material: 1.2mm zinc coated steel
  • Protection Rating: IP66
  • Screw Type: Captive 316 stainless steel combo head screws
  • Gasket Type: Formed in place polyurethane gaskets
  • Finish: Powdercoated Pebble grey RAL7032
  • Dimensions (H x L x W): 300mm x 120mm x 150mm
  • Weight: 2.2 kg
Key Features
  • IP66 protection rating.
  • Captive 316 stainless steel combo head screws to prevent loss when fastening.
  • Provision for mounting DIN rail or a mounting pan for increased application flexibility.
  • Flat face gutter system.
  • Manufactured from 1.2mm zinc coated steel.
  • Formed in place polyurethane gaskets.
  • Powdercoated Pebble grey RAL7032.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Housing terminations, pushbuttons, or switchgear in demanding applications.
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation).
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Connector TE – Zinc Coated Steel is available now for immediate purchase. Ideal for industrial applications requiring robust and reliable enclosures.
