ALCL50M10/10

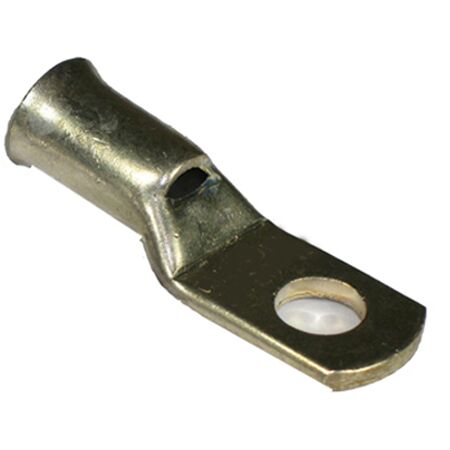

Copper Crimp Lugs 50mm & Stud 10mm


$25.90 List price: $33.80
+

Weight: 0.050 kg

Non-Insulated Copper Lugs

FEATURES

  • Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable
  • Electro tinned finish for high conductivity
  • Includes inspection hole
  • Conform to IS 191 (part V GR.ETP) specifications

Part No

Description

Conductor Size
(mm²)

Stud Size (mm)



ALCL1.5M4/100

Copper Lug

1.5

4.0



ALCL1.5M5/100

Copper Lug

1.5

5.0



ALCL1.5M6/100

Copper Lug

1.5

6.0



ALCL2.5M4/100

Copper Lug

2.5

4.0



ALCL2.5M5/100

Copper Lug

2.5

5.0



ALCL2.5M6/100

Copper Lug

2.5

6.0



ALCL2.5M8/100

Copper Lug

2.5

8.0



ALCL4M5/100

Copper Lug

4.0

5.0



ALCL4M6/100

Copper Lug

4.0

6.0



ALCL4M8/100

Copper Lug

4.0

8.0



ALCL6M6/50

Copper Lug

6.0

6.0



ALCL6M8/50

Copper Lug

6.0

8.0



ALCL6M10/50

Copper Lug

6.0

10.0



ALCL10M6/25

Copper Lug

10.0

6.0



ALCL10M8/25

Copper Lug

10.0

8.0



ALCL10M10/25

Copper Lug

10.0

10.0



ALCL10M12/25

Copper Lug

10.0

12.0



ALCL16M6/25

Copper Lug

16.0

6.0



ALCL16M8/25

Copper Lug

16.0

8.0



ALCL16M10/25

Copper Lug

16.0

10.0



ALCL16M12/25

Copper Lug

16.0

12.0



ALCL25M6/25

Copper Lug

25.0

6.0



ALCL25M8/25

Copper Lug

25.0

8.0



ALCL25M10/25

Copper Lug

25.0

10.0



ALCL25M12/25

Copper Lug

25.0

12.0



ALCL35M6/25

Copper Lug

35.0

6.0



ALCL35M8/25

Copper Lug

35.0

8.0



ALCL35M10/25

Copper Lug

35.0

10.0



ALCL35M12/25

Copper Lug

35.0

12.0



ALCL35MB/25

Copper Lug

35.0

-



ALCL50M8/10

Copper Lug

50.0

8.0



ALCL50M10/10

Copper Lug

50.0

10.0



ALCL50M12/10

Copper Lug

50.0

12.0



ALCL70M8/10

Copper Lug

70.0

8.0



ALCL70M10/10

Copper Lug

70.0

10.0



ALCL70M12/10

Copper Lug

70.0

12.0



ALCL70M16/10

Copper Lug

70.0

16.0



ALCL95M8/10

Copper Lug

95.0

8.0



ALCL95M10/10

Copper Lug

95.0

10.0



ALCL95M12/10

Copper Lug

95.0

12.0



ALCL95M16/10

Copper Lug

95.0

16.0



ALCL120M10/10

Copper Lug

120.0

10.0



ALCL120M12/10

Copper Lug

120.0

12.0



ALCL120M16/10

Copper Lug

120.0

16.0



ALCL150M10/10

Copper Lug

150.0

10.0



ALCL150M12/10

Copper Lug

150.0

12.0



ALCL150M16/10

Copper Lug

150.0

16.0



ALCL185M10/6

Copper Lug

185.0

10.0



ALCL185M12/6

Copper Lug

185.0

12.0



ALCL185M16/6

Copper Lug

185.0

16.0



ALCL240M8/6

Copper Lug

240.0

8.0



ALCL240M12/6

Copper Lug

240.0

12.0



ALCL240M16/6

Copper Lug

240.0

16.0



ALCL240M20/6

Copper Lug

240.0

20.0



ALCL240MB/6

Copper Lug

240.0

-



ALCL300MB/3

Copper Lug

300.0

-



ALCL400MB/3

Copper Lug

400.0

-



ALCL500MB/3

Copper Lug

500.0

-



ALCL630MB/3

Copper Lug

630.0

-
