PQAPFM100XG4FFCX1A
BRAND: NHP

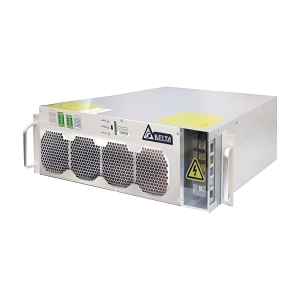

Delta Active Power Filter (APF) Power Module 100A 3 Phase 4 Wire Front Connect Fixed Type


$16,604.30 List price: $22,048.30

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Delta Active Power Filter (APF) Power Module 100A 3 Phase 4 Wire Front Connect Fixed Type

Brand: NHP

SKU: PQAPFM100XG4FFCX1A

Alternatively Known As: Active Harmonic Filter, APF Module, Power Quality Filter

Technical Specifications
  • Rated Operating Voltage: 308-458 V
  • Input Voltage THD Range: 15 %
  • Rated Frequency: 50-60 Hz
  • Total Rated Capacity per Module: 100 A
  • Degree of Protection: IP30
  • Response Time: 20 s
  • Instant Response Time: 0.1 s
  • Operating Temperature: -10-50 °C
  • Dimensions (H x L x W): 190mm x 606mm x 600mm
  • Weight: 63 kg
Key Features
  • Active harmonic filtering to improve power quality.
  • Front connect design for easy installation and maintenance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Industrial: Factories and manufacturing plants
  • Commercial: Large office buildings and data centers
  • General: Any facility requiring power quality improvement
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Reduces energy losses and improves overall system efficiency.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Delta Active Power Filter (APF) Power Module 100A is available now for immediate purchase. Ideal for industrial and commercial applications requiring enhanced power quality.

PQAPFM100XG4FFCX1A-AU-APF-Module-Front-Connect-Datasheet.pdf (PQAPFM100XG4FFCX1A-AU-APF-Module-Front-Connect-Datasheet.pdf, 267 Kb) [Download]
