BRAND: NHP

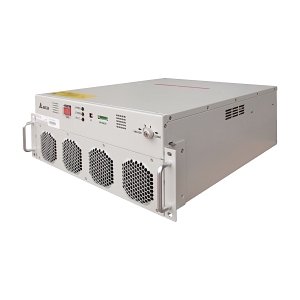

Delta Active Power Filter (APF) Power Module 75A 3 Phase 4 Wire Rear Connect Draw Type


$14,546.50 List price: $19,315.80
+

Product Name/Title: Delta Active Power Filter (APF) Power Module 75A 3 Phase 4 Wire Rear Connect Draw Type

Brand: NHP

SKU: PQAPFM75XG4DRCX1A

Alternatively Known As: Active Harmonic Filter, Power Quality Module, Harmonic Mitigation Device

Technical Specifications
  • Rated Operating Voltage: 308-458 V
  • Input Voltage THD Range: 15 %
  • Rated Frequency: 50-60 Hz
  • Degree of Protection: IP30
  • Response Time: 20 s
  • Instant Response Time: 0.1 s
  • Operating Temperature: -10-50 °C
  • Dimensions (H x L x W): 600mm x 300mm x 400mm
  • Weight: 10 kg
Key Features
  • Designed for 3 phase 4 wire systems.
  • Rated capacity of 75A for effective power filtering.
  • IP30 protection rating for indoor use.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Industrial: Manufacturing facilities requiring power quality improvement
  • Commercial: Large buildings with significant electrical loads
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Reduces energy losses and improves overall system efficiency.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Delta Active Power Filter (APF) Power Module 75A is available now for immediate purchase. Ideal for industrial and commercial applications requiring power quality enhancement.

Non-Returnable & Non-Cancellable

PQAPFM75XG4DRCX1A-AU-APF-Module-Rear-Connect-Datasheet.pdf (PQAPFM75XG4DRCX1A-AU-APF-Module-Rear-Connect-Datasheet.pdf, 235 Kb) [Download]
