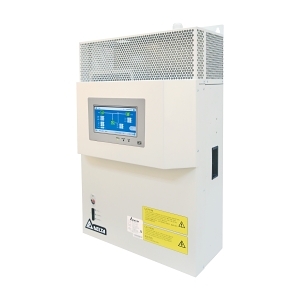

Product Name/Title: Delta Electronics APF Wall Mount System 50A IP30 3P 4W Grey
Brand: NHP
SKU: PQAPFW5030G4XXT1A
Alternatively Known As: Active Power Filter, Harmonic Filter, AHF Module
Technical Specifications
- Rated Operating Voltage: 308-456 V
- Rated Frequency: 50-60 Hz
- Switching Frequency: 60 Hz
- Total Rated Capacity per Module: 50 A
- Response Time: 20 s (instant 100 s)
- Mean Time Before Failure (MTBF): 100,000 h
- Thermal Loss: 3 %
- Operating Temperature: -10-40 °C
- Harmonic Elimination Range: 2nd-50th order (selectable)
- Harmonic Filtering Performance: Up to 98% harmonics at rated load
- Dimensions (H x L x W): 600mm x 174mm x 440mm
- Weight: 30 kg
Key Features
- Active Power Filter for harmonic elimination.
- Programmable harmonic filtering type and degree.
- Modbus-RTU and Modbus-TCP/IP communication protocols.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Manufacturing facilities
- Commercial: Data centers, large office buildings
- General: Any application requiring harmonic filtering
Standards & Compliance
- Complies with AS/NZS 60035 for electrical equipment in explosive atmospheres.
Environmental Benefits
- Reduces energy losses and improves overall power quality.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Delta Electronics APF Wall Mount System 50A IP30 3P 4W Grey is available now for immediate purchase. Ideal for industrial and commercial applications requiring harmonic filtering.
