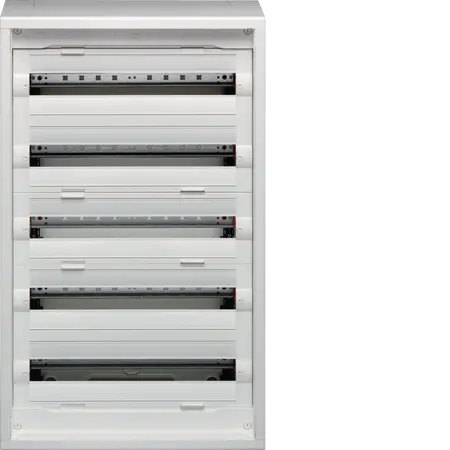

Distribution Enclosure 120 Modules | 900x550x193mm | Surface-Mounted by Hager

BRAND: :hager
SKU: FD52DN
$1,400.40 List price: $1,790.70
+
Distribution enclosure with 120 modules and surface-mounted design—ideal for residential and commercial electrical distribution. Built for easy installation, with durable construction and 160 A rated current.

Product Name/Title: Enclosure, NewVegaD, 900x550x193mm, 120 modules, surface-mounted, distribution

Brand: Hager

SKU: FD52DN

Alternatively Known As: Hager Distribution Enclosure, NewVegaD Cabinet, Surface-Mounted Electrical Enclosure

Technical Specifications
  • Nominal voltage: 230 - 400 V
  • Rated current: 160 A
  • Number of conduit inlets: 4
  • Number of rails: 5
  • Number of rows: 5
  • Impact resistance: IK07
  • Ingress Protection (IP) class: IP30
  • Isolation class: II
  • Dimensions (H x L x W): 900mm x 193mm x 550mm
  • Weight: 10 kg
Key Features
  • Surface-mounted design for easy installation.
  • Rated current of 160 A with a capacity for 120 modules.
  • Constructed from durable metal and plastic materials.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager NewVegaD Enclosure is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
