Home/Electrical/Lighting/Light Fittings/Downlights/DL106/10w Tri Color

Trade Discount 23%

SKU: DL106/10W/TC

BRAND: 3A Lighting

DL106/10w Tri Color

$20.50 List price: $26.70

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: DL106/10w Tri Color

Brand: 3A Lighting

SKU: DL106/10W/TC

Alternatively Known As: Tricolour LED Downlight, 3A LED Downlight, Selectable CCT Downlight, Dimmable LED Downlight

Technical Specifications

Power: 10W
Selectable Colour Temperature: 3000K / 4000K / 5700K (via DIP switch)
Finish: White & Black options
Heat Sink: Anodised aluminium
Driver: Remote constant current dimmable LED driver with flex & plug
IP Rating: IP54

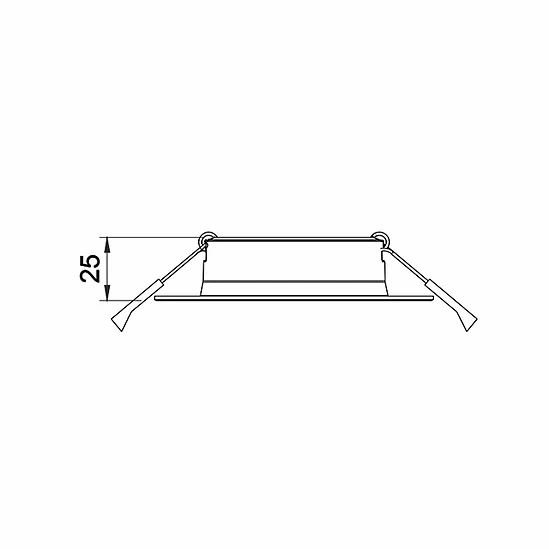

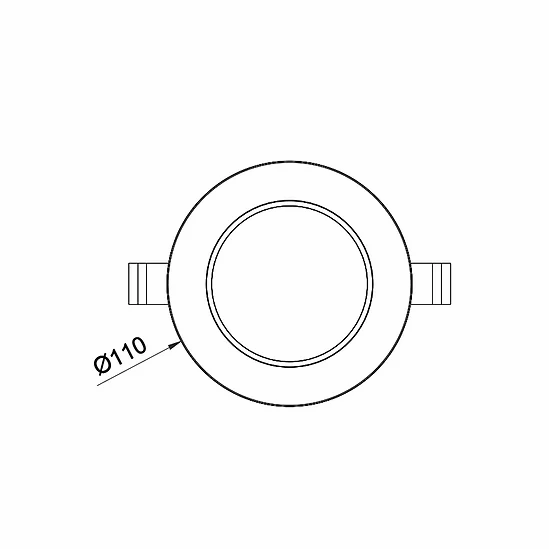

Dimensions (H x L x W): 60mm x 110mm x 110mm
Weight: 0.3 kg

Key Features

High efficiency LED chip and translucent diffuser
Selectable colour temperature (3000K/4000K/5700K) via inbuilt DIP switch
Available in white and black finishes
Anodised aluminium heat sink for improved thermal management
Remote constant current dimmable LED driver with flex and plug
Easy installation
IP54 rated for dust and splash protection

Professional Installation Requirements

Installation by a licensed electrician is required to ensure compliance with Australian standards and optimal performance.

Applications

Residential: Living rooms, bedrooms, hallways
Commercial: Reception areas, hotels, shops

Standards & Compliance

Complies with AS/NZS 60598 for safety and performance standards.
Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)

Environmental Benefits

Energy-efficient LED technology reduces power consumption and carbon footprint.
Long lifespan minimizes waste and replacement frequency.

Warranty Information

3 years replacement warranty.

Available Now

The 3A Lighting DL106/10W/TC Tricolour LED Downlight is available for immediate purchase. Ideal for residential and commercial lighting applications.

Check out our catalogue (d307c2_661c3f1e94fa472cbdc2c83cfd4f499e.pdf, 24,604 Kb) [Download]

Data Sheet (d307c2_0f14bf0538194e95b01301733df50d1d.pdf, 538 Kb) [Download]

Lighting Requirement Calculator

Room Length (m):

Room Width (m):

Room Height (m):
Select Room Type:
Beam Angle (degrees):
Kelvin Rating:
Enter Lumens per Light:

This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
