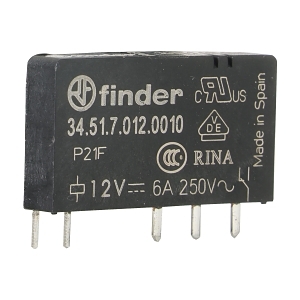

Product Name/Title: Finder 34 Series Slim Printed Circuit Board Relay 6A 1 Changeover 12V DC Coil
Brand: NHP
SKU: 345112VDC
Alternatively Known As: PCB Relay, Slim Relay, Finder Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 300 VA
- Breaking Capacity at DC 1 30 V: 6 A
- Breaking Capacity at DC 1 110 V: 0.2 A
- Control Supply Voltage (US) at DC: 12 V
- Electrical Life at Un in Service Cycles: 60000 cycles
- Mechanical Life Service Cycles: 10000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 15mm x 5mm
- Weight: 0.1 kg
Key Features
- Compact design suitable for PCB mounting.
- Mono stable operation with a single changeover contact.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 34 Series Slim Printed Circuit Board Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
