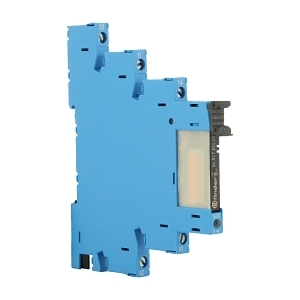

Product Name/Title: Finder 38 Series Relay Interface Modules Relay 6A 1 Changeover 24V AC DC Coil
Brand: NHP
SKU: 385124VACDC
Alternatively Known As: Relay Module, Interface Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (AC 50 Hz): 24 V
- Control Supply Voltage (DC): 24 V
- Control Supply Voltage (AC 60 Hz): 24 V
- Type of Electric Connection: Screw connection
- Degree of Protection: IP20
- Dimensions (H x L x W): 884mm x 721mm x 62mm
- Weight: 0.5 kg
Key Features
- 1 changeover contact with a nominal current of 6A.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications.
