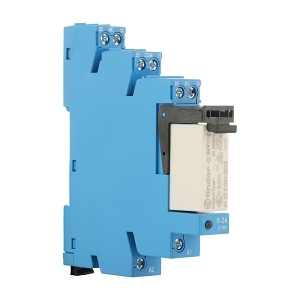

Product Name/Title: Finder 38 Series Relay Interface Modules Relay 8A 2 Changeover 24V DC Sensitive Coil
Brand: NHP
SKU: 385224VDC
Alternatively Known As: Relay Module, Interface Relay, 8A Relay, 24V DC Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage UE AC: 400 V
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 230 V: 400 VA
- Breaking Capacity at DC 1 30 V: 8 A
- Breaking Capacity at DC 1 110 V: 0.3 A
- Control Supply Voltage US at DC: 24 V
- Electrical Life at Un in Service Cycles: 60000 cycles
- Mechanical Life Service Cycles: 10000000 cycles
- Degree of Protection IP: IP20
- Dimensions (H x L x W): 88.4mm x 73.6mm x 14mm
- Weight: 0.5 kg
Key Features
- 8A nominal current with 2 changeover contacts.
- LED indication for operational status.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC control
- General: Any application requiring relay control
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 38 Series Relay Interface Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable relay control.
