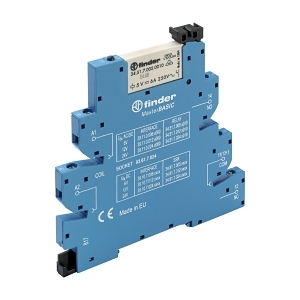

Product Name/Title: Finder 39 Series Master Basic Relay Interface Module 6A 1 Changeover 24V AC DC Coil
Brand: NHP
SKU: 391124VACDC
Alternatively Known As: Relay Interface Module, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Number of Contacts: 1 Changeover
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Breaking Capacity at DC-1 (110 V): 0.2 A
- Control Supply Voltage (AC/DC): 24 V
- Electrical Life: 60000 cycles
- Mechanical Life: 10000000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 87mm x 91mm x 62mm
- Weight: 0.5 kg
Key Features
- Mono stable operation with LED indication.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Building management systems, HVAC controls
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 39 Series Master Basic Relay Interface Module 6A 1 Changeover 24V AC DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
