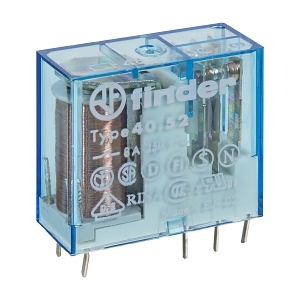

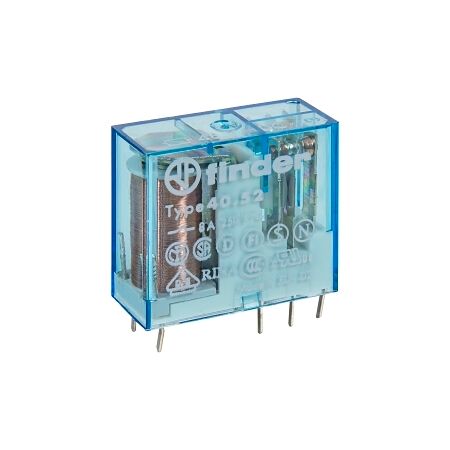

Finder 40 Series Miniature Printed Circuit Board Relay 8A 2 Changeover 48V DC Coil
Trade Discount 24%
The Finder 40 Series Miniature PCB Relay offers reliable switching capabilities with a compact design, ideal for various industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 40 Series Miniature Printed Circuit Board Relay 8A 2 Changeover 48V DC Coil
Brand: NHP
SKU: 405248VDC
Alternatively Known As: Miniature PCB Relay, 8A Relay, Finder Relay
Technical Specifications
- Nominal Current: 8 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 2 Changeover
- Rated Switching Power at AC 1: 2000 VA
- Rated Switching Power at AC 15 (230 V): 750 VA
- Breaking Capacity at DC 1 (30 V): 8 A
- Breaking Capacity at DC 1 (110 V): 0.3 A
- Control Supply Voltage (US) at DC: 48 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -45 to 85 °C
- Dimensions (H x L x W): 29mm x 25mm x 12.4mm
- Weight: 0.1 kg
Key Features
- Compact design suitable for PCB mounting.
- High electrical life of 100,000 cycles.
- Polarity-free drive for versatile applications.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 40 Series Miniature Printed Circuit Board Relay is available now for immediate purchase, ideal for various industrial and commercial applications.
