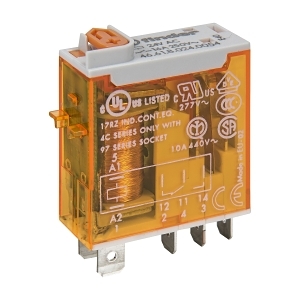

Product Name/Title: Finder 46 Series Miniature Relay 16A 1 CO 24V AC Coil with PB plus LED plus Mech. Indicator
Brand: NHP
SKU: 4661005424VAC
Alternatively Known As: Miniature Relay, 16A Relay, Finder Relay, Power Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 440 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 (230 V): 750 VA
- Breaking Capacity at DC 1 (30 V): 12 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 29mm x 32.8mm x 12.4mm
- Weight: 0.1 kg
Key Features
- 16A nominal current with 1 changeover contact.
- LED indication and mechanical indicator for status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 46 Series Miniature Relay 16A 1 CO 24V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
