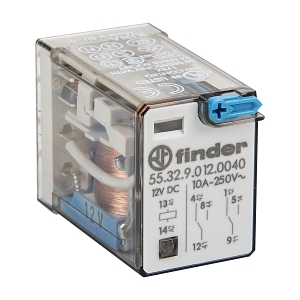

Finder 55 Series Miniature General Purpose Relay 10A 2CO 12V DC Coil with PB plus Mech Indicator
Trade Discount 25%
The Finder 55 Series Miniature General Purpose Relay offers reliable switching capabilities with a 10A rating and a 12V DC coil, ideal for various industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 55 Series Miniature General Purpose Relay 10A 2CO 12V DC Coil with PB plus Mech Indicator
Brand: NHP
SKU: 5532004012VDC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (DC): 12 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase, suitable for various industrial and commercial applications.
