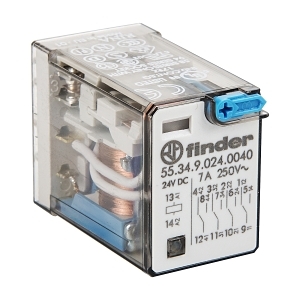

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 125V DC Coil with PB plus Mech Indicator
Brand: NHP
SKU: 55340040125VDC
Alternatively Known As: Miniature Relay, General Purpose Relay, Finder Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 250 V
- Rated Switching Power at AC-1: 1750 VA
- Rated Switching Power at AC-15 (230 V): 350 VA
- Breaking Capacity at DC-1 (30 V): 7 A
- Breaking Capacity at DC-1 (110 V): 0.25 A
- Control Supply Voltage (US) at DC: 125 V
- Electrical Life at Un in Service: 150,000 cycles
- Mechanical Life Service Cycles: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Long mechanical life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
