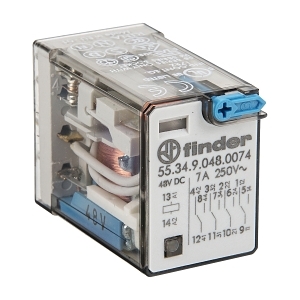

Product Name/Title: Finder 55 Series Miniature General Purpose Relay 7A 4CO 48V DC Coil with PB plus LED plus Mech Ind
Brand: NHP
SKU: 5534007448VDC
Alternatively Known As: Miniature Relay, General Purpose Relay, 4CO Relay
Technical Specifications
- Nominal Current: 7 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 250 V
- Rated Switching Power at AC 1: 1750 VA
- Rated Switching Power at AC 15 (230 V): 350 VA
- Breaking Capacity at DC 1 (30 V): 7 A
- Breaking Capacity at DC 1 (110 V): 0.25 A
- Control Supply Voltage (DC): 48 V
- Electrical Life: 150,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 27.7mm x 36.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- 4 changeover contacts for versatile switching options.
- LED indication for operational status.
- Mechanical indicator for enhanced visibility.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Energy-efficient design contributes to reduced power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature General Purpose Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
