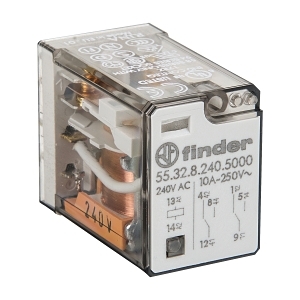

Finder 55 Series Miniature GP Relay 10A 2CO 240V AC Coil PB plus LED plus Mech Indi Gold Cont
Trade Discount 25%
The Finder 55 Series Miniature GP Relay is designed for general purpose applications, featuring a 10A capacity, LED indication, and a mechanical indicator for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 55 Series Miniature GP Relay 10A 2CO 240V AC Coil PB plus LED plus Mech Indi Gold Cont
Brand: NHP
SKU: 55325000240VAC
Alternatively Known As: Miniature Relay, GP Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 2500 VA
- Rated Switching Power at AC 15 (230 V): 500 VA
- Breaking Capacity at DC 1 (30 V): 10 A
- Breaking Capacity at DC 1 (110 V): 0.25 A
- Control Supply Voltage: 240 V AC
- Electrical Life: 200,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 85 °C
- Dimensions (H x L x W): 28mm x 37mm x 21mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical and mechanical life cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Long operational life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 55 Series Miniature GP Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
