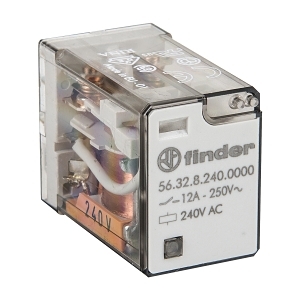

Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 240V AC Coil
Brand: NHP
SKU: 5632240VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver nickel
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 12A nominal current.
- Plug-in connection for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
