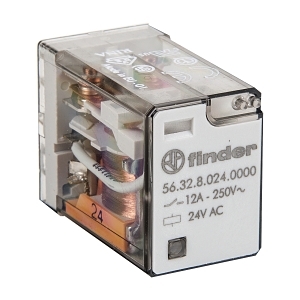

Finder 56 Series Miniature Power Relay 12A 2CO 24V AC Coil
The Finder 56 Series Miniature Power Relay is designed for general purpose applications, providing reliable switching with a nominal current of 12A and a 24V AC coil.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 24V AC Coil
Brand: NHP
SKU: 563224VAC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Number of Contacts: 2 CO
- Rated Switching Power at AC 1: 3000 VA
- Rated Switching Power at AC 15 (230 V): 700 VA
- Breaking Capacity at DC 1 (30 V): 12 A
- Breaking Capacity at DC 1 (110 V): 0.5 A
- Control Supply Voltage: 24 V AC
- Electrical Life: 100,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 12A nominal current.
- Plug-in connection for easy installation.
- High electrical life rated at 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 24V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
