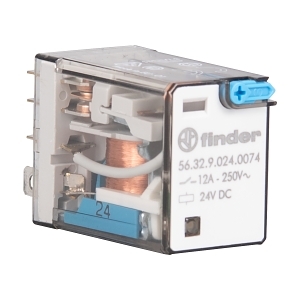

Finder 56 Series Miniature Power Relay 12A 2CO 24V DC Coil with PB plus LED plus Mechanical Ind
The Finder 56 Series Miniature Power Relay is designed for general purpose applications, featuring a 12A capacity, 2 changeover contacts, and a 24V DC coil, ensuring reliable performance in various control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 56 Series Miniature Power Relay 12A 2CO 24V DC Coil with PB plus LED plus Mechanical Ind
Brand: NHP
SKU: 5632007424VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Number of Contacts: 2 (Change Over)
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life Service Cycles: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.7mm x 20.7mm
- Weight: 0.1 kg
Key Features
- General purpose relay with LED indication and mechanical indicator.
- Plug-in connection for easy installation.
- High electrical life rated for 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 2CO 24V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
