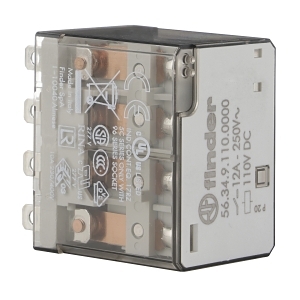

Finder 56 Series Miniature Power Relay 12A 4CO 110V DC Coil
The Finder 56 Series Miniature Power Relay is designed for general purpose applications, featuring a 12A capacity and 4 changeover contacts, ideal for automation and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 56 Series Miniature Power Relay 12A 4CO 110V DC Coil
Brand: NHP
SKU: 5634110VDC
Alternatively Known As: Miniature Power Relay, 12A Relay, Finder Relay
Technical Specifications
- Nominal Current: 12 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC-1: 3000 VA
- Rated Switching Power at AC-15 (230 V): 700 VA
- Breaking Capacity at DC-1 (30 V): 12 A
- Breaking Capacity at DC-1 (110 V): 0.5 A
- Control Supply Voltage (US) at DC: 110 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 27.7mm x 37.1mm x 40.8mm
- Weight: 0.1 kg
Key Features
- General purpose relay with 4 changeover contacts.
- Rated for 12A nominal current and 110V DC coil.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 56 Series Miniature Power Relay 12A 4CO 110V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
