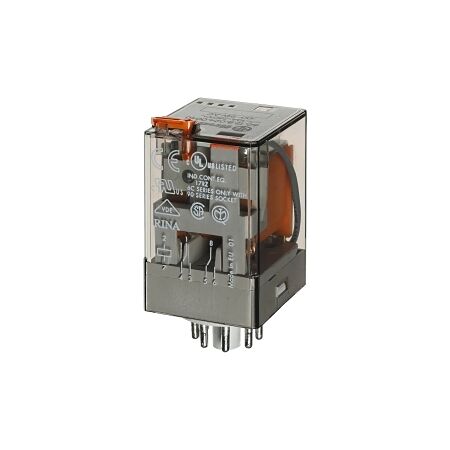

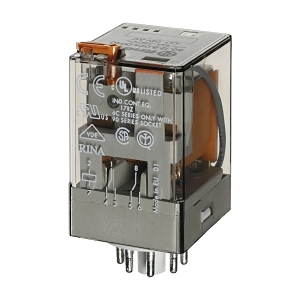

Finder 60 Series General Purpose Relay 10A 2CO 12V DC Coil with PB plus Mechanical Indicator
Trade Discount 25%
The Finder 60 Series General Purpose Relay offers reliable switching capabilities with a 10A rating and a 12V DC coil, ideal for various industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 60 Series General Purpose Relay 10A 2CO 12V DC Coil with PB plus Mechanical Indicator
Brand: NHP
SKU: 601212VDCRLY
Alternatively Known As: General Purpose Relay, 10A Relay, Finder Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (AC): 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (DC): 12 V
- Electrical Life: 200,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.4mm x 54.2mm x 32.5mm
- Weight: 0.1 kg
Key Features
- 10A nominal current with 2 changeover contacts.
- Mechanical indicator for operational status.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design reduces waste and extends product life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 60 Series General Purpose Relay 10A 2CO 12V DC Coil is available now for immediate purchase, suitable for various industrial and commercial applications.
