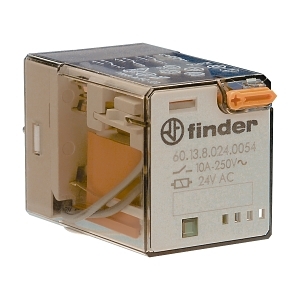

Product Name/Title: Finder 60 Series General Purpose Relay 10A 3CO 240V AC Coil
Brand: NHP
SKU: 6013240VAC
Alternatively Known As: General Purpose Relay, Switching Relay, Panel Mount Relay
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Electrical Life: 200,000 cycles
- Mechanical Life: 20,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver nickel
- Type of Electric Connection: Plug-in connection
- Dimensions (H x L x W): 36.4mm x 54.2mm x 32.5mm
- Weight: 0.2 kg
- 10A nominal current with 3 changeover contacts.
- Wide operating voltage range of 192-264V AC.
- Long electrical life rated at 200,000 cycles.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
- Complies with AS/NZS 3000 for electrical installation safety.
- Energy-efficient operation reduces overall power consumption.
1 year warranty against manufacturing defects.
The Finder 60 Series General Purpose Relay 10A 3CO 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
