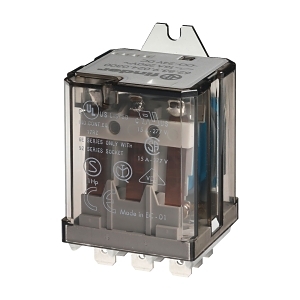

Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 2CO 240V AC Coil with Pushbutton and Mechanical Ind
Brand: NHP
SKU: 62820040240VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 (230 V): 750 VA
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 36mm x 68mm x 38mm
- Weight: 0.5 kg
Key Features
- 16A nominal current with 2 changeover contacts.
- Mechanical indicator and latching test button included.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 2CO 240V AC Coil is available now for immediate purchase, ideal for industrial and commercial applications.
