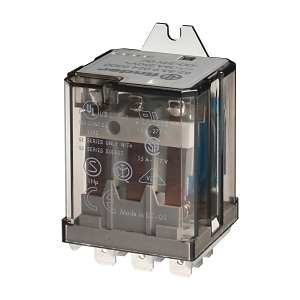

Finder 62 Series Power Relay Flange Mount 16A 3CO 110V DC Coil with Pushbutton plus Mechanical Ind
Trade Discount 25%
The Finder 62 Series Power Relay is designed for reliable performance in industrial applications, featuring a 16A capacity, 3CO contacts, and a 110V DC coil with a mechanical indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 62 Series Power Relay Flange Mount 16A 3CO 110V DC Coil with Pushbutton plus Mechanical Ind
Brand: NHP
SKU: 62830040110VDC
Alternatively Known As: Power Relay, Flange Mount Relay, 16A Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC-1: 4000 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 16 A
- Breaking Capacity at DC-1 (110 V): 0.6 A
- Control Supply Voltage (US) at DC: 110 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life Service Cycles: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36mm x 68mm x 38mm
- Weight: 0.5 kg
Key Features
- 16A nominal current with 3 changeover contacts.
- 110V DC coil with mechanical indicator and pushbutton.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Flange Mount 16A 3CO 110V DC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
