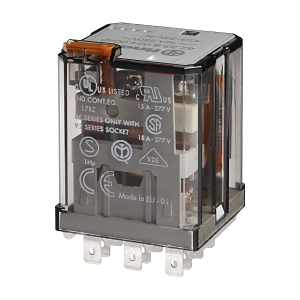

Finder 62 Series Power Relay Plug in 16A 3CO 24V DC Coil with Pushbutton plus Mechanical Indicator
Trade Discount 25%
The Finder 62 Series Power Relay offers reliable switching capabilities with a 16A capacity and a 24V DC coil, ideal for various industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 62 Series Power Relay Plug in 16A 3CO 24V DC Coil with Pushbutton plus Mechanical Indicator
Brand: NHP
SKU: 623324VDC
Alternatively Known As: Power Relay, PCB Relay, Switching Relay
Technical Specifications
- Nominal Current: 16 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage AC: 400 V
- Number of Contacts: 3 (Change Over)
- Rated Switching Power at AC 1: 4000 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 16 A
- Breaking Capacity at DC 1 110 V: 0.6 A
- Control Supply Voltage: 24 V DC
- Electrical Life: 100,000 cycles
- Mechanical Life: 30,000,000 cycles
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36mm x 48mm x 38mm
- Weight: 0.2 kg
Key Features
- 16A nominal current with 3 changeover contacts.
- Plug-in connection for easy installation.
- Mechanical indicator and latching test button included.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 62 Series Power Relay Plug in 16A 3CO 24V DC Coil is available now for immediate purchase, suitable for various industrial and commercial applications.
